How to: Export from PACS.

Exporting an exam in iQ-Web is the equivalent to downloading the entire exam to a location specified on the PACS Server. The Export will include all DICOM and JPEG data, along with Structured Reports and any secondary capture data, such as Scanned Paperwork.

1. Filter EasyWeb and search for the exam you wish to export.

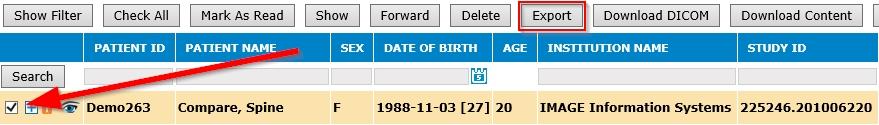

2. Select the checkbox to the left of the exam you wish to Export.

3. Once the exam(s) is selected, click the Export button across the top menu bar.

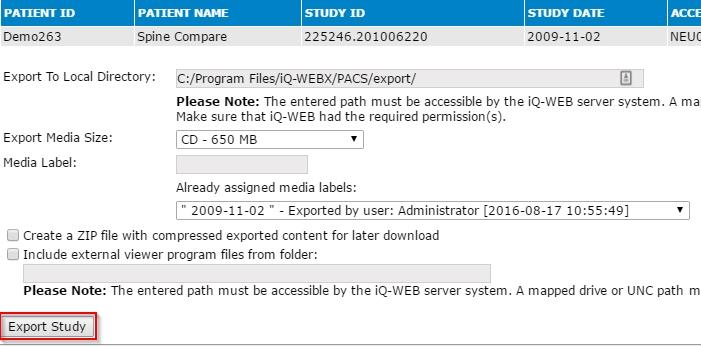

4. You will have several options on how to export the exam.

1. Export To Local Directory

1. By default this is a directory on the PACS Server.

1. Default – C:/Program Files/iQ-WEBX/PACS/export/

2. It can be any mapped Drive or UNC path as well.

3. It can also be a USB drive attached to the server.

2. Export Media Format

1. CD – 650MB – If the exam(s) being exported will fit on a CD-r

2. DVD – 4.7GB – If the exam(s) being exported will not fit on a CD-r

3. Dual-Layer DVD – 8.5GB – If the exam(s) being exported will fit on a DVD-r

4. Unlimited – If the exam(s) being exported will fit on a DLDVD-r

3. Media Label

1. This is a unique identifier to be able to verify the exported Exam once finished.

1. This can be whatever you want it to be.

4. Create a Zip File

1. This option will compress allow you to download a compressed zipped file containing the exam.

5. Include External Viewer

1. This will allow you to include the iQ-View Lite Viewer with the exported exam.

2. You will have to provide the UNC location of the iQ-View “ExternalViewerTools” folder.

1. This option requires a workstation with iQ-View installed and licensed.

1. Example Path – \localhostC:Program Files (x86)iQ-VIEW BETA TESTExternalViewerTools

1. The entered path must be accessible by the iQ-WEB server system. Make sure that iQ-WEB has the required permission(s).

5. Once you selected the desired options. Click the “Export Study“ button at the bottom.

6. After clicking the Export Study THe process will begin.

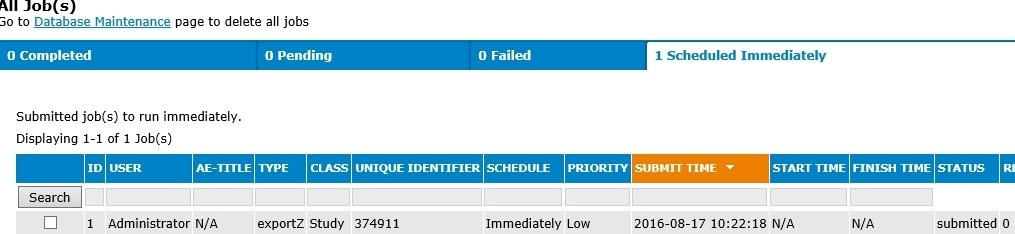

1. You will be shown the Job number related to the Export Job.

1.

2. The Job Number is a link, that you can click, which will take you to the job.

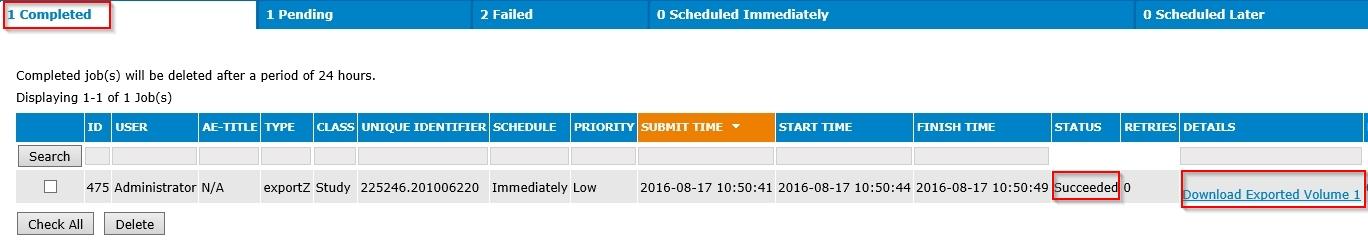

3. When the export has succeeded it will be moved to the Completed Section.

1. If you chose to export a ZIP there will be a link to download the zip file.

The Export Process is now finished.
